New York Doors

New York System

DYFAs New York doors offer endless possibilities, which all can be combined with our New York walls and windows. The doors are produced either as traditional hinged doors with individual glass modules or as a full glass door with glued-on fake transoms.

The system is made in aluminium and is standard powder coated in black, RAL 9005 gloss 03, fine structure, with a 6 mm toughened safety glass. Though, the full glass walls come with an 8 mm toughened safety glass. A standard module is 500 x 720 mm, however it can be customised to your project requirements. Transom width is 35 mm.

Customised to your wishes

DYFAs New York System is produced by measure for every project. Size, colour, and fillings can be customised to project requirements. Read more about our most popular solutions:

P1 double pivot door with oak pull handles and side partitions

The system is characterised by a slim industrial design, with customisable solutions, which has no

visible joints and is easy to assemble.

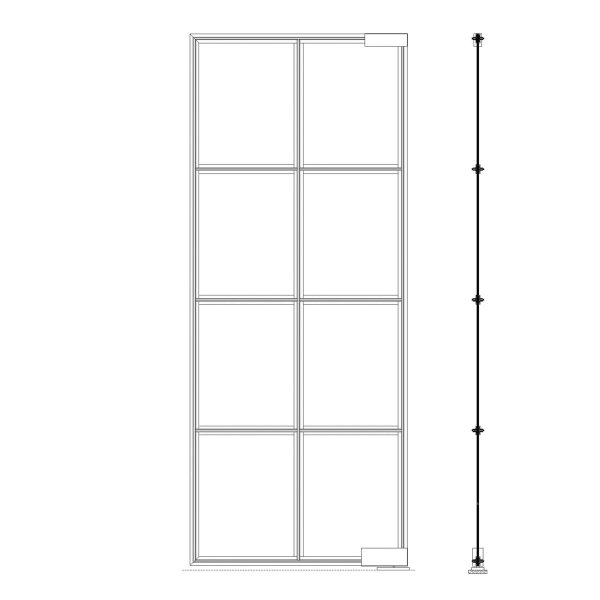

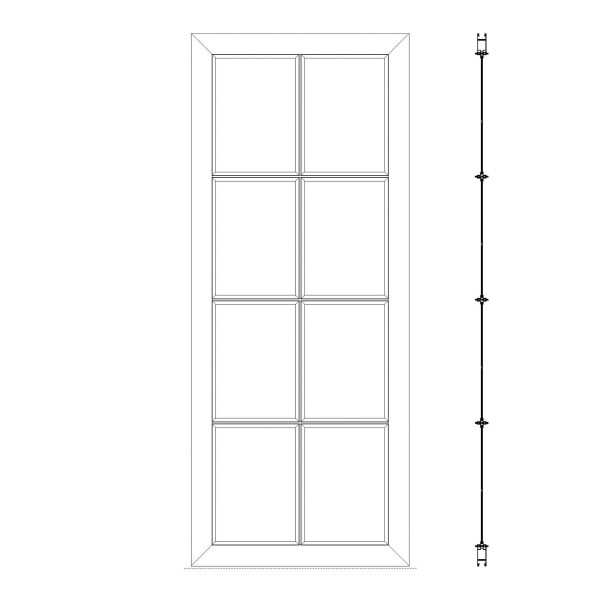

P1 – Frame door with 95 mm frame

P2 – Frame door with 50 mm frame

P3 – Full glass door with 35 mm fake transoms

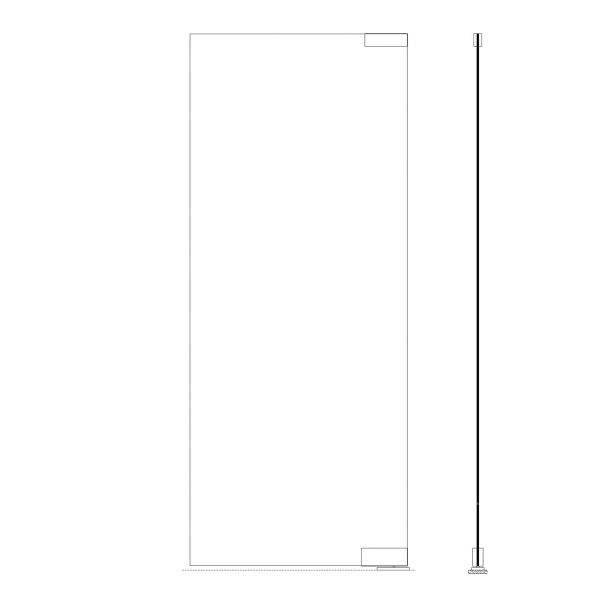

P3 – Full glass door

Pivot door

DYFAs pivot doors can be made in very large sizes, which means they can be made to reach from floor to ceiling in most rooms. The pivot door can also be combined with a glass wall if it is desired.

The pivot door has an opening radius of 90 degrees in both directions. Fasten to a stable and secure base, top and bottom.

Maximum size of a pivot door is 1400 mm in width x 4 m2 surface area.

For example, the pivot door can be 650 x 6000 mm (width x height), or 1400 x 2500 mm, there are several possibilities.

The pivot door is available in three types, either as a single or double door:

P1: Pivot door with 95 mm frame
P2: Pivot door with 50 mm frame
P3: Full glass pivot door with 35 mm fake transoms

The pivot door is delivered with a floor-based door closer. For an additional purchase, you can choose the following options: concealed door closer mounted in the ceiling, pull handle, push plate, roller latch, lever bolt etc. Read more here

Hinged door

DYFAs hinged doors are available in two versions, a frame door and a full glass door. Both doors have an opening radius of 180 degrees in one direction. Fasten to a stable and secure base, top and bottom

The frame door is the closet you get to a traditional hinged door of glass and wood. It is built with individual glass modules which are held together by the aluminium jamb frame.

The full glass door offers the slimmest profile. The doors are produced as a full glass door with glued-on fake transoms. The full glass door is available in a version with an 8 mm safety glass, and a soundproof version with 10,76 mm soundproof glass, with a sound attenuation of 38 dB.



Maximum size of hinged doors is width x height: 1100 x 2400 mm.

The hinged door is available in three types, either as a single or double door:

H1: Hinged Frame Door with 95 mm frame
H2: Hinged Frame Door with 50 mm frame
H3: Hinged full glass door with 35 mm fake transoms

he hinged door is delivered integrated into an aluminium jamb frame ready-to-install on site, with a lock case (Except H2, which is only available with a roller latch). Additionally, the following add-ons options can be purchased: lever handle, roller latch, a threshold in aluminium etc. Read more here

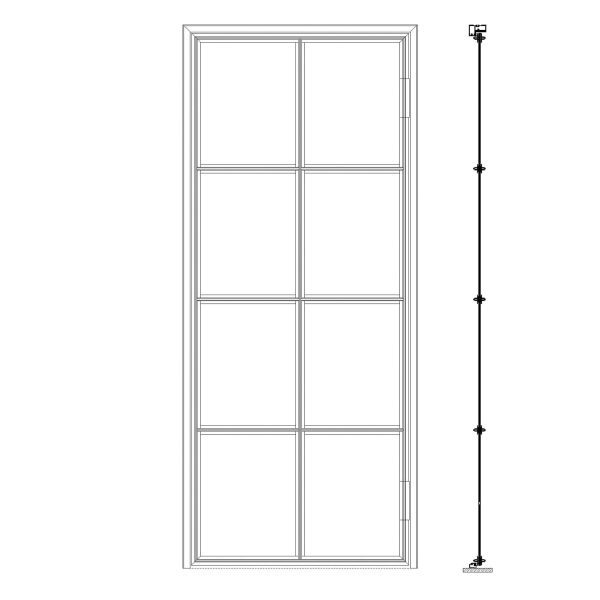

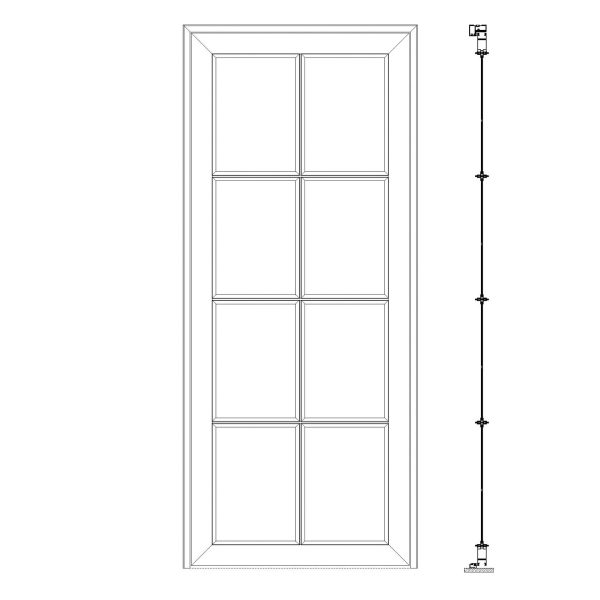

H1 – Hinged frame door with 95 mm frame

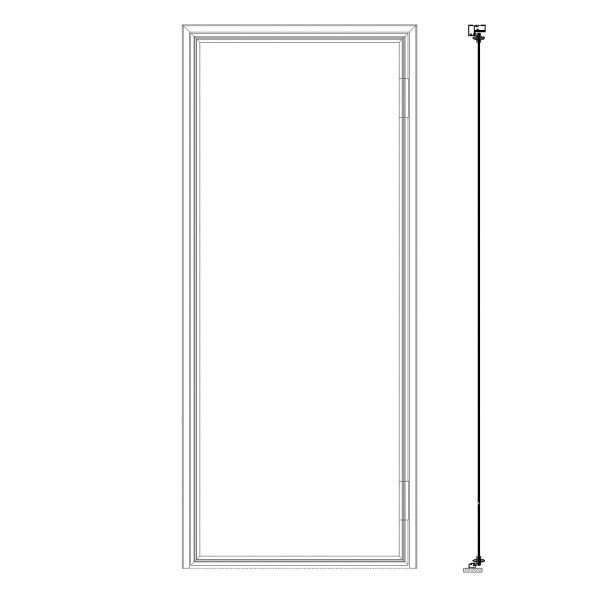

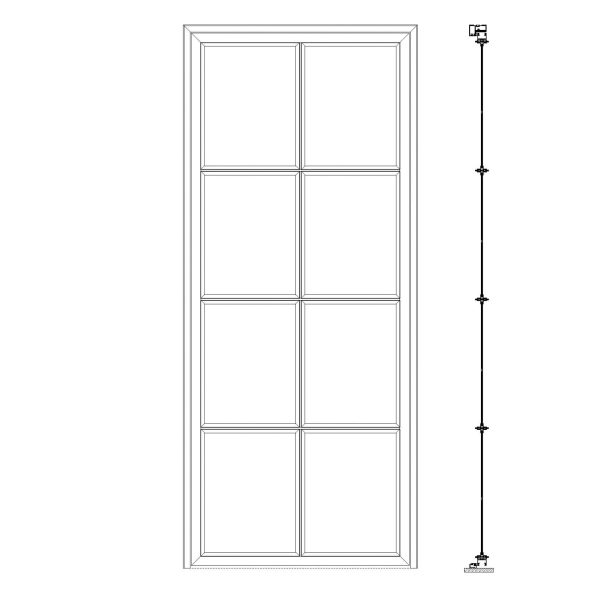

H2 – Hinged frame door with 50 mm frame

H3 – Hinged full glass door with 35 mm fake transoms

H3 – Hinged full glass door with 35 mm fake transoms border

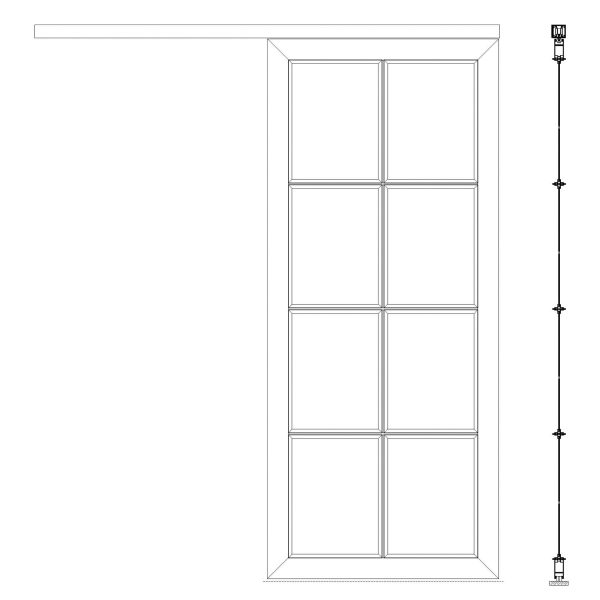

S1 – Sliding door with 95 mm frame

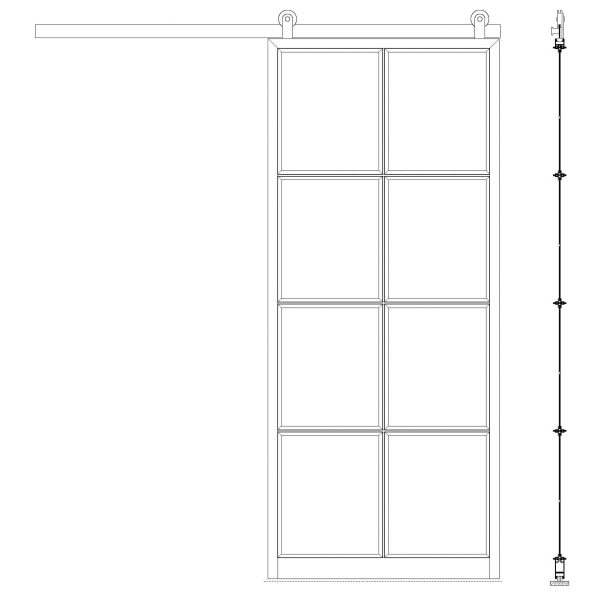

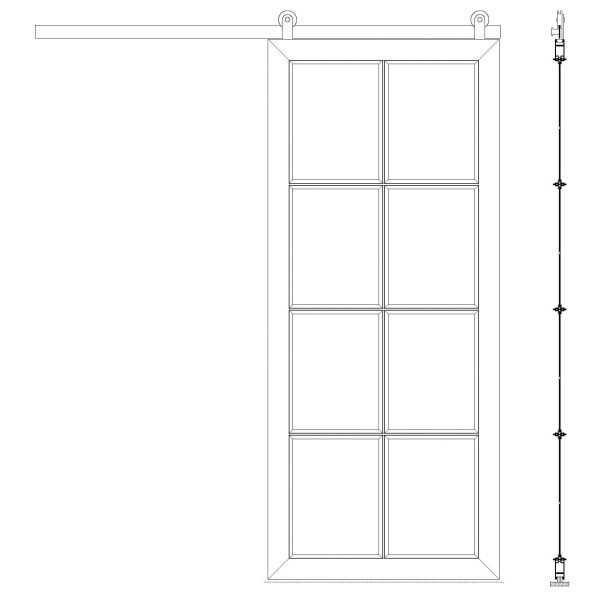

S1-R – Sliding door with 95 mm frame with visible roller brackets

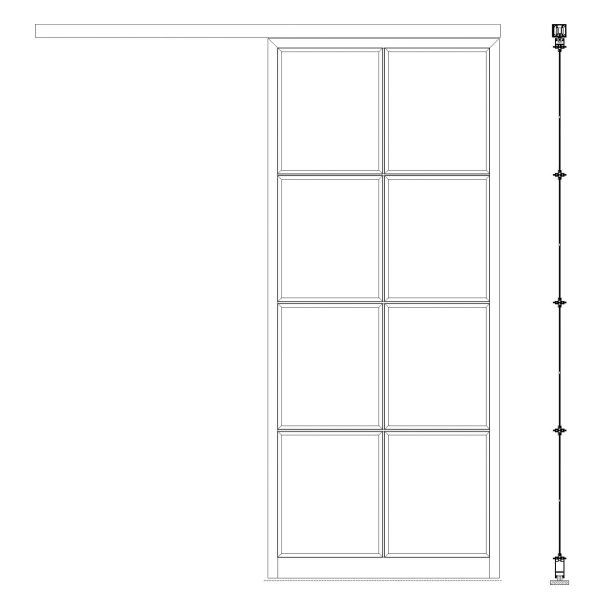

S2 – Sliding door with 50 mm frame

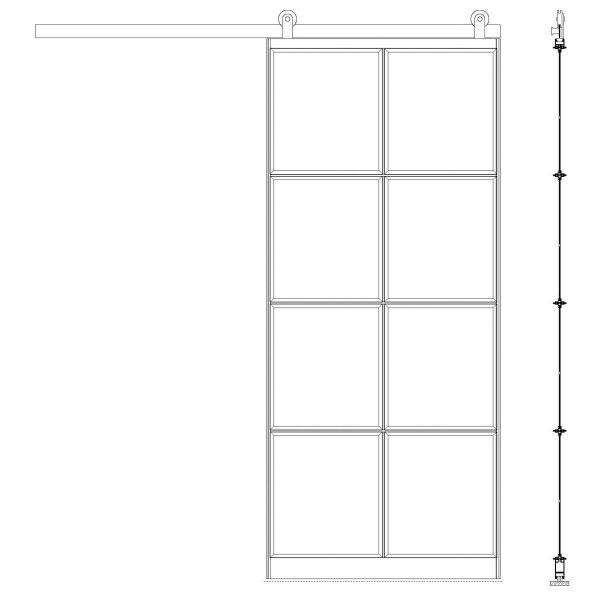

S2-R – Sliding door with 50 mm frame with visible roller brackets

S3 – Full glass sliding door with 35 mm fake transoms

S5 – Sliding door with top- and bottom frame

S5-R – Sliding door with top- and bottom frame with visible roller brackets

Sliding door

DYFAs sliding door is built on the same principles as the previous door types and is available as a framed door with individual glass modules and an aluminium frame, as well as a full glass door with glued-on transoms.

The sliding door can be delivered with two different top tracks. The first option can be built into the ceiling, which hides the track and makes only the sliding door visible. A more distinctive and rustic look can be achieved by selecting the top track with visible roller brackets inspired by old-fashioned barn door rails.

Maximum size of sliding doors is width x height: 1100 x 2400 mm. With the exception of S1, were maximum size is 1200 x 2400 mm.

The sliding door is available in seven types:

S1: Sliding door with 95 mm frame
S1-R: Sliding door with 95 mm frame with visible roller brackets
S2: Sliding door with 50 mm frame
S2-R: Sliding door with 50 mm frame with visible roller brackets
S3: Full glass sliding door with 35 mm fake transoms
S5: Sliding door with top- and bottom frame
S5-R: Sliding door with top- and bottom frame with visible roller brackets

The sliding door is delivered without handles and with top tracks without visible roller brackets and bottom guide. For an additional purchase, you can choose the following options: Door knop, soft-close, top track rail with visible roller brackets etc. Read more here

Folding door

DYFAs folding doors offer a combination between a regular glass wall and a glass wall with an integrated door solution, by combining the two. The folding door is produced with individual glass modules.

The folding door gives your room a flexible and practical quality. Thus, visually you get a regular complete glass wall and room divider, together with a large flexible doorway with the possibility to connect and divide the rooms at will. The number of folding doors and the dimensioning of these doors are adapted to the individual project.

The folding door is available in one type:

F1: Folding door with 95 mm frame

The folding door is delivered with a top track rail and floor lever bolt sockets. The top track rail can be installed visibly on the wall or hidden in the ceiling. Additionally, the following add-ons options can be purchased: other colours, fillings, handles etc. Read more here

F1 - Folding door with 95 mm frame

M4 - Full glass mobile wall with fake transsoms, top- and bottom frame

Mobile wall

DYFA’s mobile wall offers flexibility with a wall system suitable for dividing spaces such as conference rooms, meeting rooms, classrooms, etc.

The mobile wall differs from the folding door in that it has more flexibility and is made up of single-moving elements suspended in a top rail. The individual elements are serviced separately, providing several parking options.

Unlike the folding door, the mobile wall is produced with a 10 mm safety glass, with glued-on fake transoms. The size, appearance and number of elements of the mobile wall are adapted to each project.

The mobile wall is available in one type:

M4: Full glass folding door with top- and bottom frame

The mobile wall comes with top rail and floor brackets. Additionally, another colour can be purchased, read more here
